Composite earth fault monitor (240V)


▼Product Details▼

Product Description

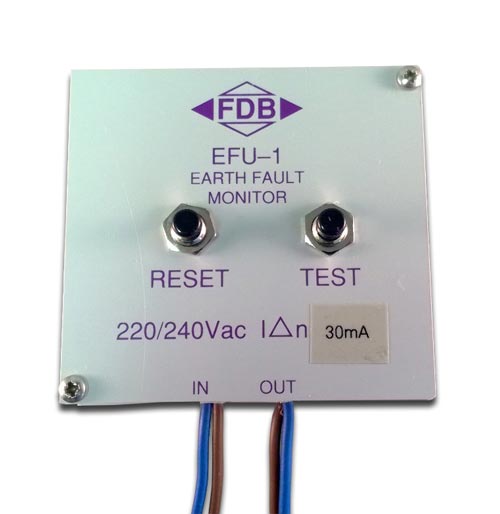

EFU-1 Composite earth fault monitor

  • Control voltage: 220-250V; 50/60Hz
  • Load rating: 25A; 2 pole independent mechanism with 3mm contact clearance gap.
  • Trip current: 10mA – 300mA (factory set*)
  • Time delay: 30mSec nominal.
  • Fully encapsulated in halogen-free, polycarbonate enclosure.
  • 35mm din rail or chassis mounting.
  • Does not require external CT or contactor

*To be specified when ordering

Quick Look Dimensions

Dimensions:75mm x 70mm x 95mm (H x W x D)

For the full product descriptions and dimensions; See the datasheet.

View Datasheet
