Product Description

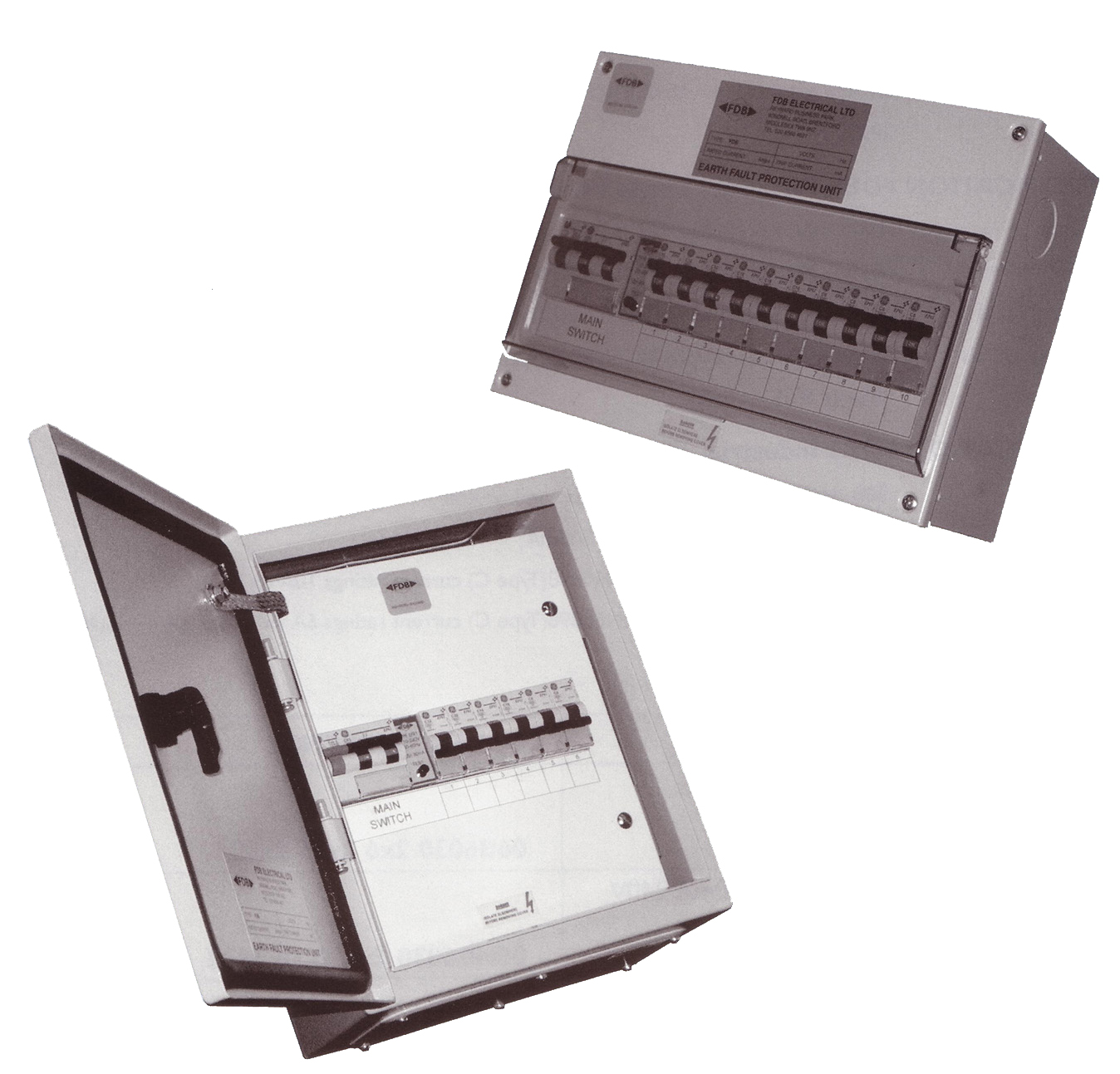

The FD6 and FD6 Industrial range can be supplied with or without RCD protection on the mains supply. The FDB6 is 110 or 240V with single or double pole MCB’s as required on sub circuits conforming to BSEN60898 6KA Type C Characteristic. The FDB6 Industrial is 110 or 240V Single
Phase or 41 SV TP&N with single, double pole or triple pole MCB’s as required on sub circuits conforming to BSEN60898 6KA Type C Characteristic.
Distribution Boards are also available to specific customer requirements.
SPECIFICATION FDB6 Single Phase
• Voltages: : 110-130V or 220-250V AC 50/60Hz single phase
• RCD Sensitivities: 20mA, 30mA, 100mA, 300mA, 500mA
• Incoming MCB: 6KA in accordance with BSEN60898(Type C) current ratings 10A to 63A.
• Outgoing MCB’s: 6KA in accordance with BSEN60898(Type C) current ratings 6A to 45A single or double pole.
• Protection: IP20
SPECIFICATION FDB6 Industrial Single Phase
• Voltages: 110-130V or 220-250V AC 50/60Hz single phase
• RCD Sensitivities: 20mA, 30mA, 100mA, 300mA, 500mA
• Incoming MCB: 6KA in accordance with BSEN60898(Type C) current ratings 10A to 100A.
• Outgoing MCB’s: 6KA in accordance with BSEN60898(Type C) current ratings 6A to 63A single or double pole.
• Protection: IP54 or IP65
SPECIFICATION FDB6 Industrial Three Phase
• Voltages: 380-440V AC 50/60Hz three phase and neutral
• RCD Sensitivities: 20mA, 30mA, 100mA, 300mA, 500mA
• Incoming MCB: 6KA in accordance with BSEN60898(Type C) current ratings I OA to I OOA.
• Outgoing MCB’s: 6KA in accordance with BSEN60898(Type C) current ratings 6A to 63A single or double pole.
• Protection: IP54 or IP65
